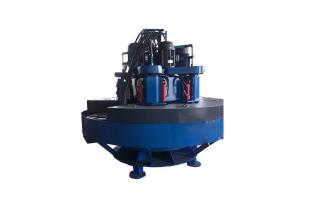

Round Rotative Polishing Machine
Round Rotative Polishing Machine
  • Round Rotative Polishing Machine
  • Round Rotative Polishing Machine
  • Round Rotative Polishing Machine
Round Rotative Polishing Machine
Round Rotative Polishing Machine Round Rotative Polishing Machine
  • Introduction

The machine use pressure to control the lifting of the polisher, the pressure can be adjust. The swinging beam drives the polisher to move, the moving speed can be adjust.

Belt type feeding plate working table,belt running speed can be adjusted; The electrical system use PLC and man-machine interface.

As a grinding and polishing equipment for marble or imitation stone production line, to make a smooth and flat surface.

Machine type

KB-MJ400

KB-MJ500

KB-MJ600

Power

24kw

31.5kw

36.5kw

No. of grinding heads

5-6

5-6

5-6

Polishing size

300*300 400*400

400*400 500*500

500*500 600*600

Polishing speed

9-15s(4-6pcs/min)

9-15s(4-6pcs/min)

9-15s(4-6pcs/min)

Weight

3 T

5 T

6 T

External dimension

Φ1950*1750mm

Φ2540*2150mm

Φ2950*2320mm
