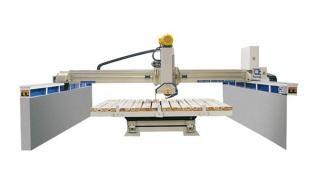

This Automatic Infrared Bridge Concrete Terrazzo Marble Granite Stone Cutting Machineadopts advanced technologies,mainly used for cutting and processing marble,granite and artificial stone slabs.For it's one-piece structure ,it has several advantages,such as small size,convenient to transport,install and adjust,high precision,high efficiency and easy to operate and maintainance.waht's more,it saves time and cost to build concrete cement base,especially suitable for custoners in small plant and always work with moving plant.

Max cutting size	3200*2000*100mm
Ddiameter of blade	Ф350-Ф450mm
Dimensions of worktable	3200*2000mm
Worktable rotating degree	0-90°/360°
Head tilting degree	0-90°
Weight	6.2/7 Tons
Water consumption	4m³/h
Size	6000*4700*2800mm
Power	20.2kw

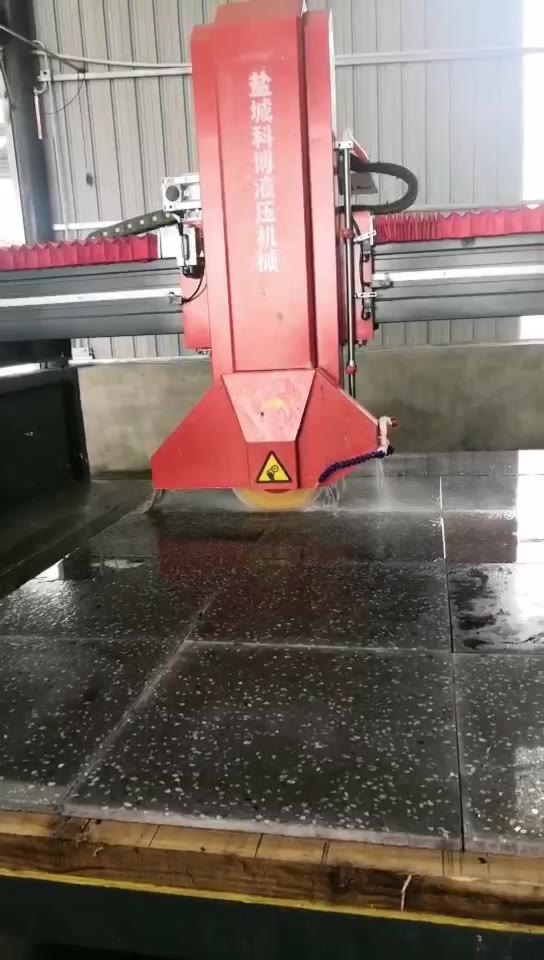

It adopts infrared knife cutting. The cutting speed is controlled by frequency conversion. using hydraulic transmission on head up and down, table turning, rotating and positioning The machine adopts PLC programmable control system and touch screen operation interface, assisted by high precision rotary encoder positioning.

The table is rotated by 90 degree principle, positioned by 360 degree mode, stable by 90 degree and 360 degree function. It is not affected by temperature difference in any area, and can be used stably to solve the problem of customer selection.

The machine has good rigidity, high working accuracy, stable operation and long service life.

This equipment is especially suitable for high value, large size plate and multi specification size cutting.
